用于反应器和中试装置的努奇过滤器

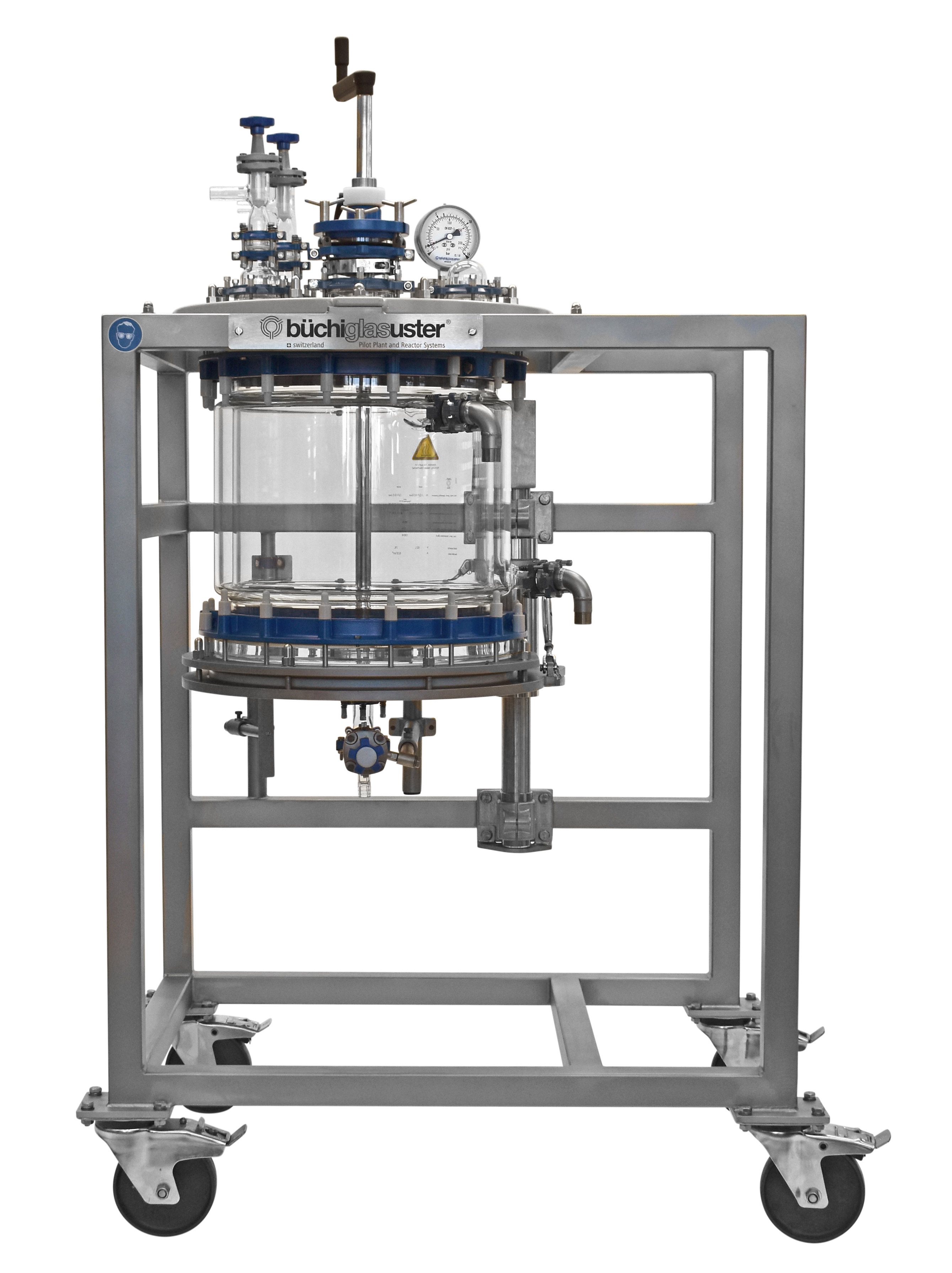

50升移动式玻璃努奇过滤器 50升移动式玻璃努奇过滤器

努奇过滤器 10 - 300 升



过滤罐:10、30、50、100、140、300升
压力:-1.0(FV)至 +0.5 巴
温度:-60 °C 至 +150 °C(200 °C)
滤布:网目尺寸 8 至 115 微米
材料: 3.3型硼硅酸盐玻璃、PTFE、PFA、ETF

您是否需要超越标准产品的解决方案?

我们可开发完全符合您的工艺流程和要求的定制化解决方案。

请联系我们



Typical applications

  • Filtration / Separation
  • Solid phase peptide synthesis (SPPS)
  • Drying
  • Chromatography
  • Purification
  • Cannabis extraction (solvent extraction)
  • Crystallization
  • Cannabinoid extraction
  • Ion exchange
  • Cannabis extract purification
  • Peptide synthesis
  • Cannabis winterization (cannabis extract winterization)


About the nutsche filter

A clean-room setup and other materials are available to meet your specific process requirements.

Buchi nutsche filters can easily be combined with our reactors for solid / liquid separation after the synthesis. The inert materials allow safe processing in an inert atmosphere of a wide range of solvents and acids in a completely sealed (buchiflex) glass system under full vacuum.

The slurry is transferred into the filter. The solid content in the slurry is held back by the filter cloth forming a filter cake, while the filtrate runs away to the outlet valve in the bottom plate. The filtering stage ends when the filtrate is of small quantity, which can be shortened by squeezing the filter cake by turning the height adjustable stirrer.

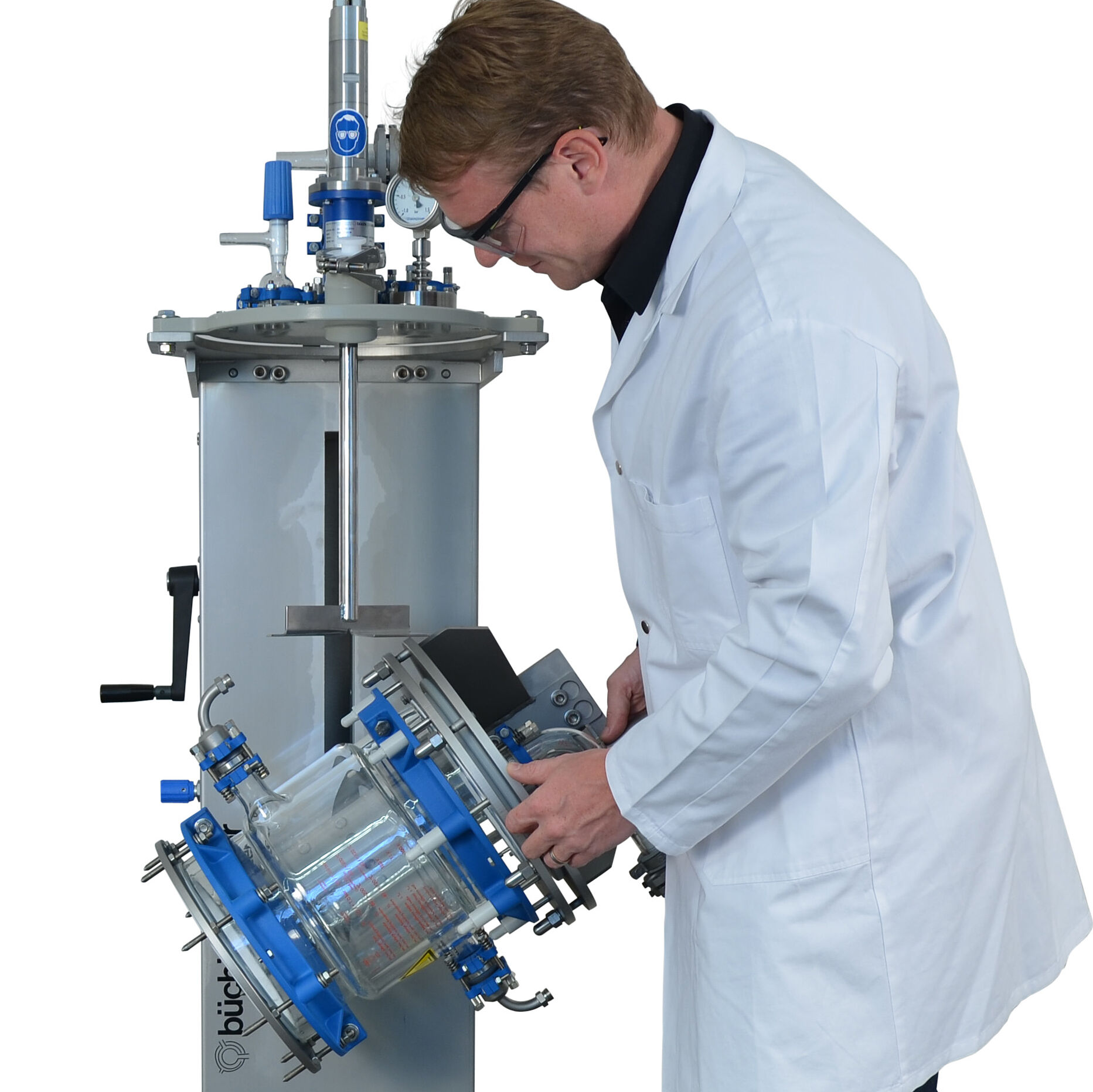

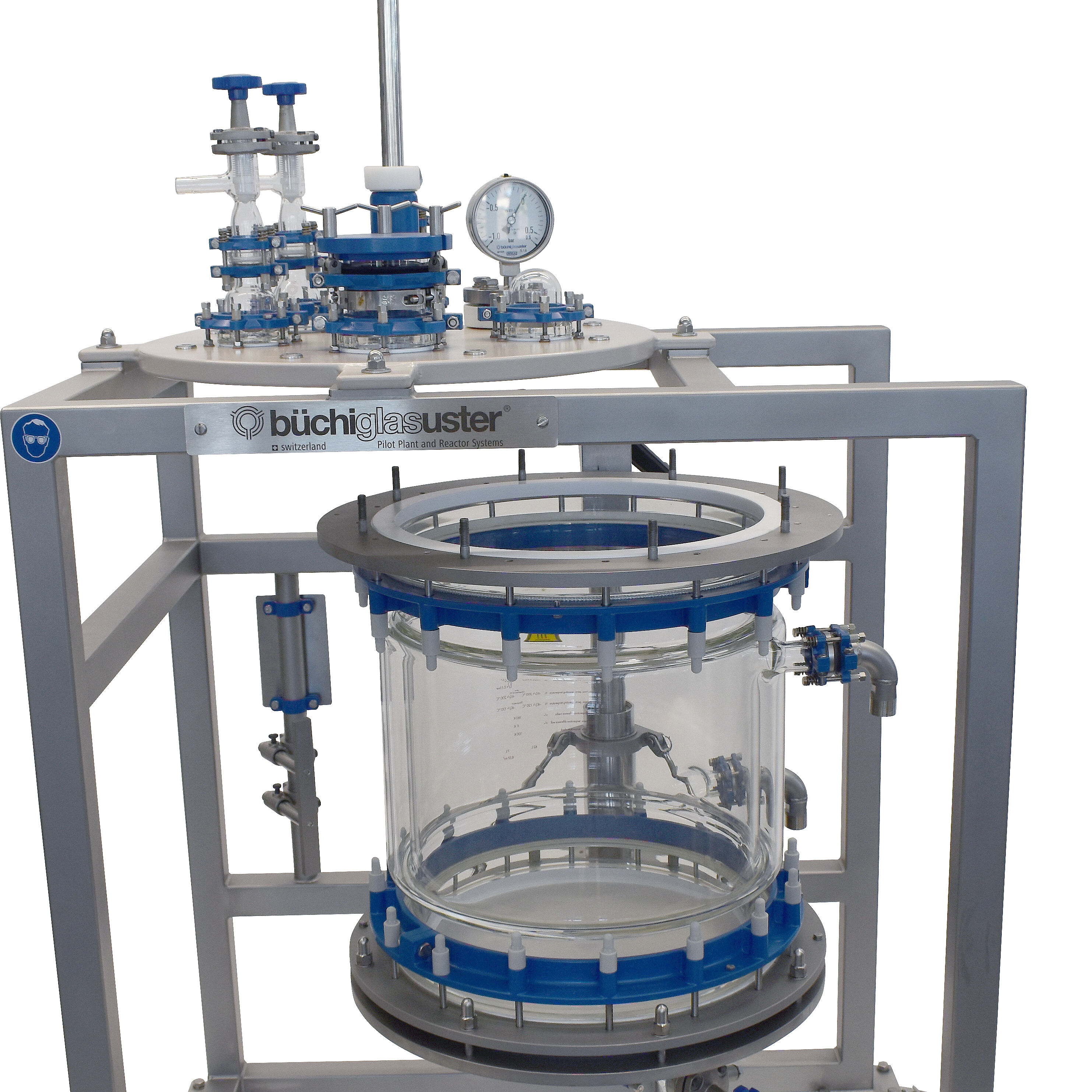

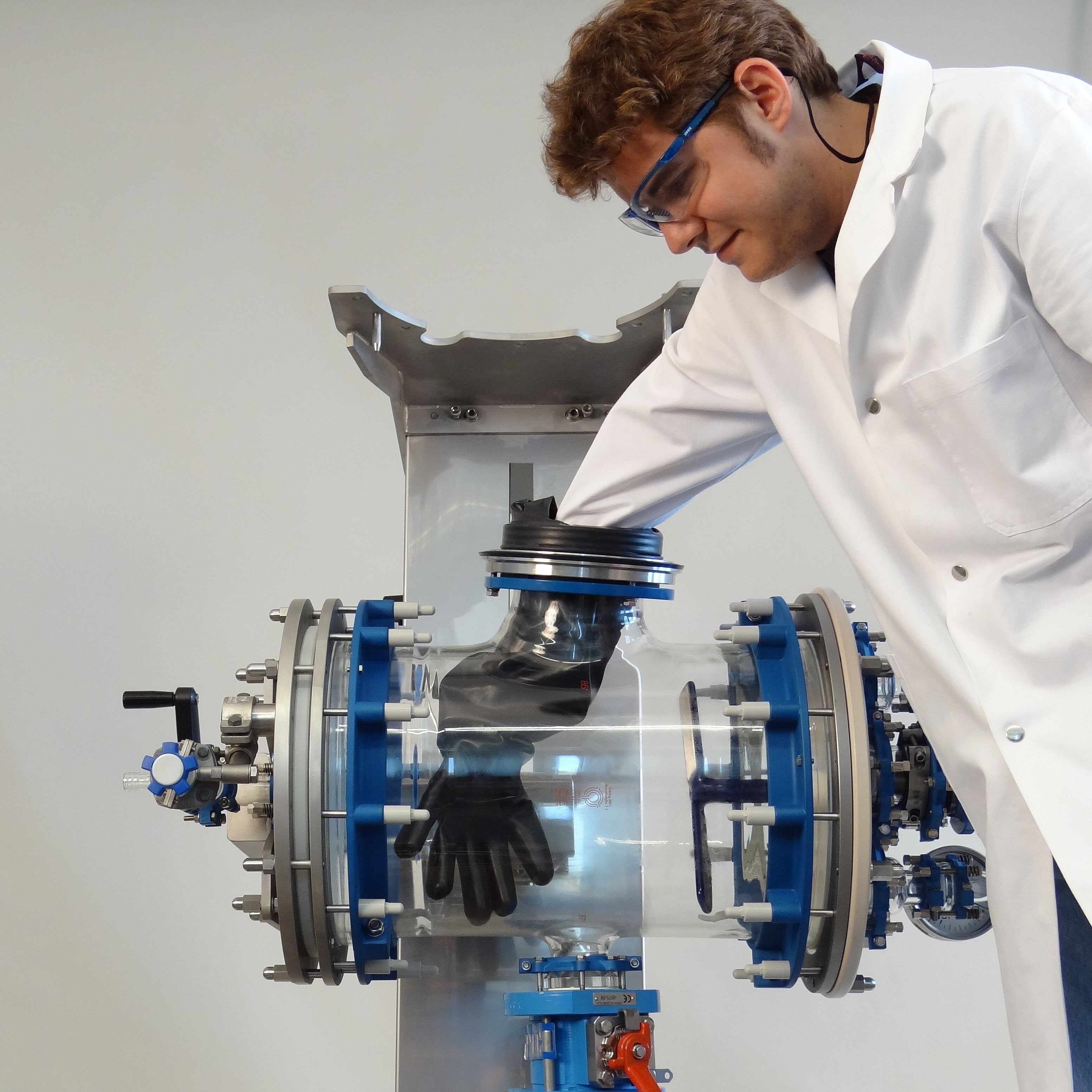

The cake is removed easily from the top by opening the cover and lowering the glass filter vessel, which is attached to the lifting device. The same lifting device is used to lower the bottom for accessing the filter cloth for cleaning and exchange.



标准套餐

  • 玻璃过滤容器
  • 带浆料进料口、氮气口等接口的ETFE涂层盖板
  • 带滤布的PTFE底板
  • 带起重装置的可移动不锈钢框架
  • 耐腐蚀性极强
  • 符合FDA标准
  • cGMP
  • 完整的文件资料

标准选项

  • 不锈钢、哈氏合金或带惰性涂层的手动搅拌器
  • 符合ATEX标准的搅拌器驱动装置,搅拌速度可调
  • 支持CIP清洗
  • 加热夹套(干燥)
  • IQ / OQ / PQ
