buchiflex – 独特的接头: Büchiglas

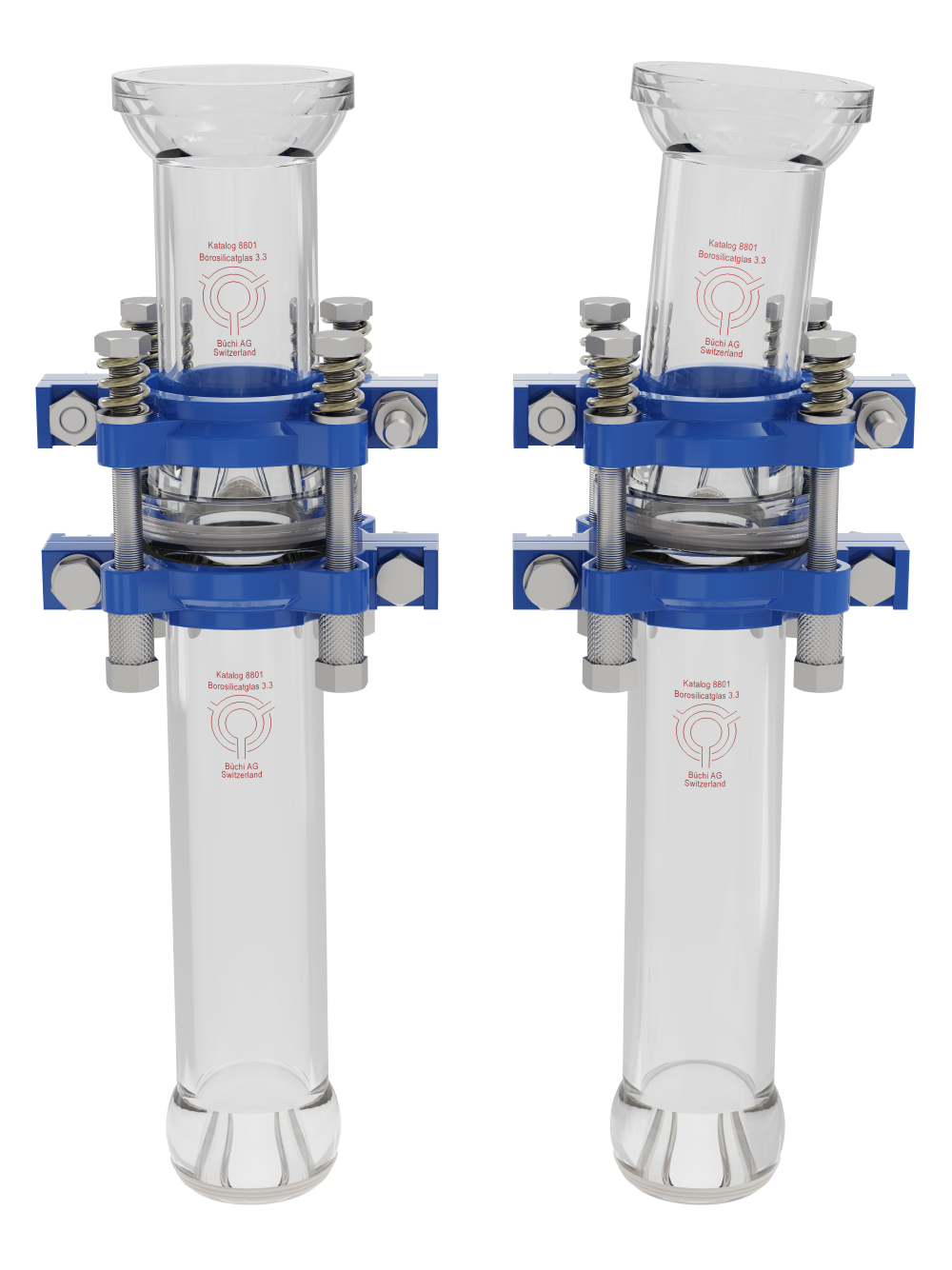

buchiflex – the unique flexible glass piping system

buchiflex –独特、灵活性的玻璃连接系统

安全、可靠和紧密连接是玻璃反应釜在化学和制药工业中能可靠的运转的的关键点。Buchi 公司的创始人在早期阶段即认知每个个别的玻璃关节灵活性的重要性。Buchiy在作为一个完整的模块化玻璃系统用互换元件的基础，发明了独特的 buchiflex 连接。独家设计使安装和维护快速和容易的工作。这个灵活的和连接系统可缩短停机时间、降低设备运营成本并提高生产率。

Buchiflex 系统安装于世界各地众多的设备上已证明其可靠性和成本效益。它符合设备在苛刻的日常运作在化工和制药行业所须的要求。

此系统及其组件亦持续的发展以确保无与伦比的可靠性，并切实使尊行现行标准和行业法规，以满足须求。

模块式组合: DN 15 - 600
多选择性 Büchi 标准零件，提高设计，结构及交货的效率
依客户须求提供有效设计
可信赖的零件供应
允许快速的更改现有设备的设计
无残留的管见设计

安全，避免玻璃产生硬立
自我中心，为圆球设计
简易及快速安装
缩短维修次数及时

midiPilot Clean-Room design with buchiflex

Glass upper section: Multipurpose

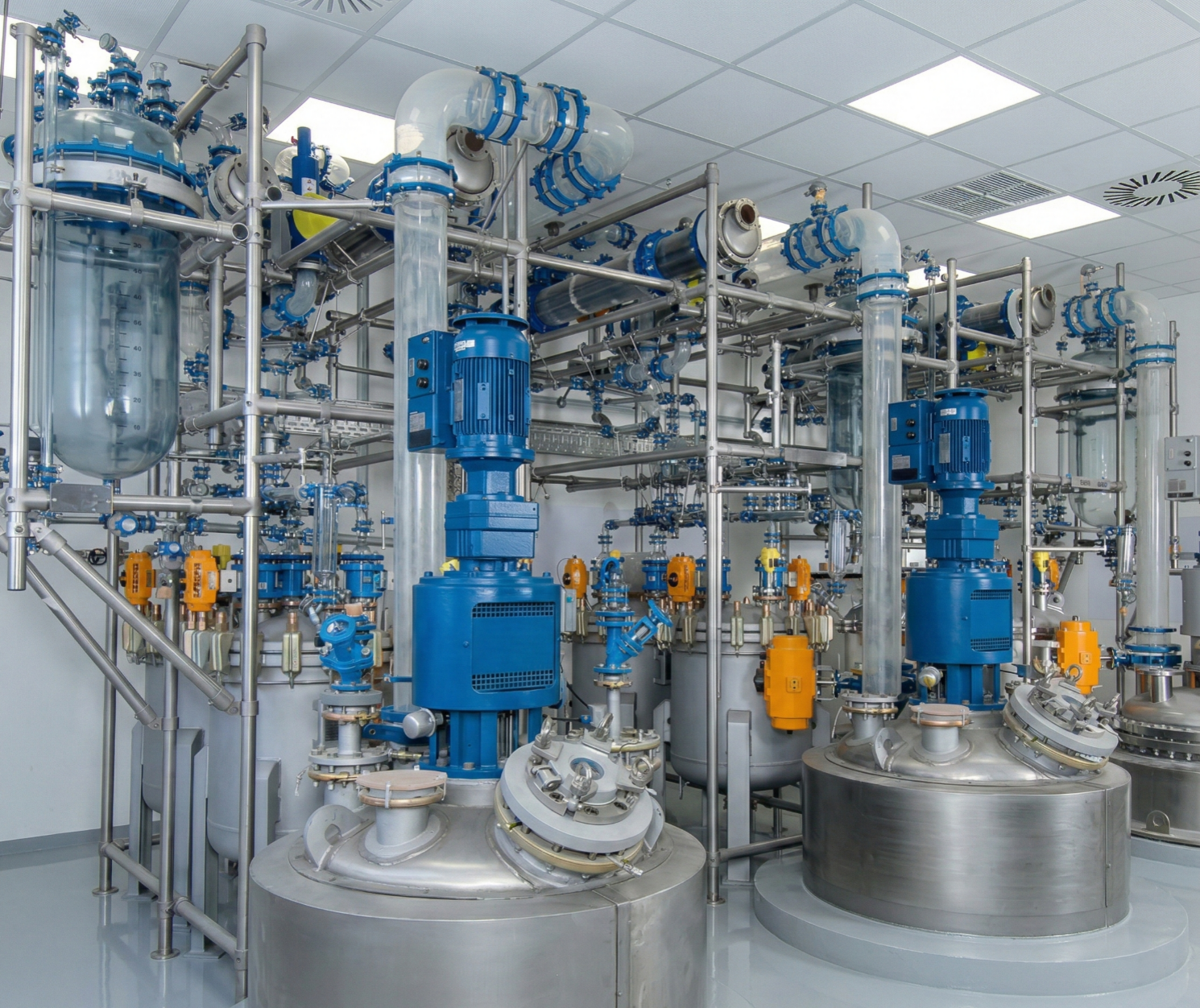

cGMP facility for API production with DIN glass lined eactors and glass distillation overhead

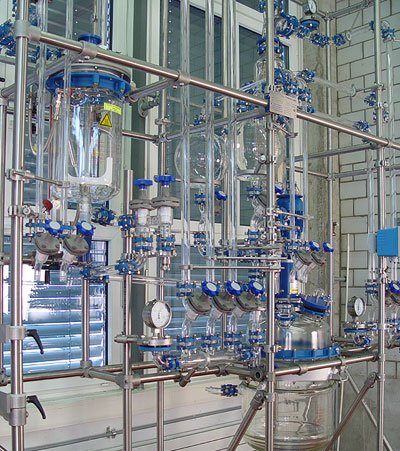

50 liter glass pilot reactor with overhead

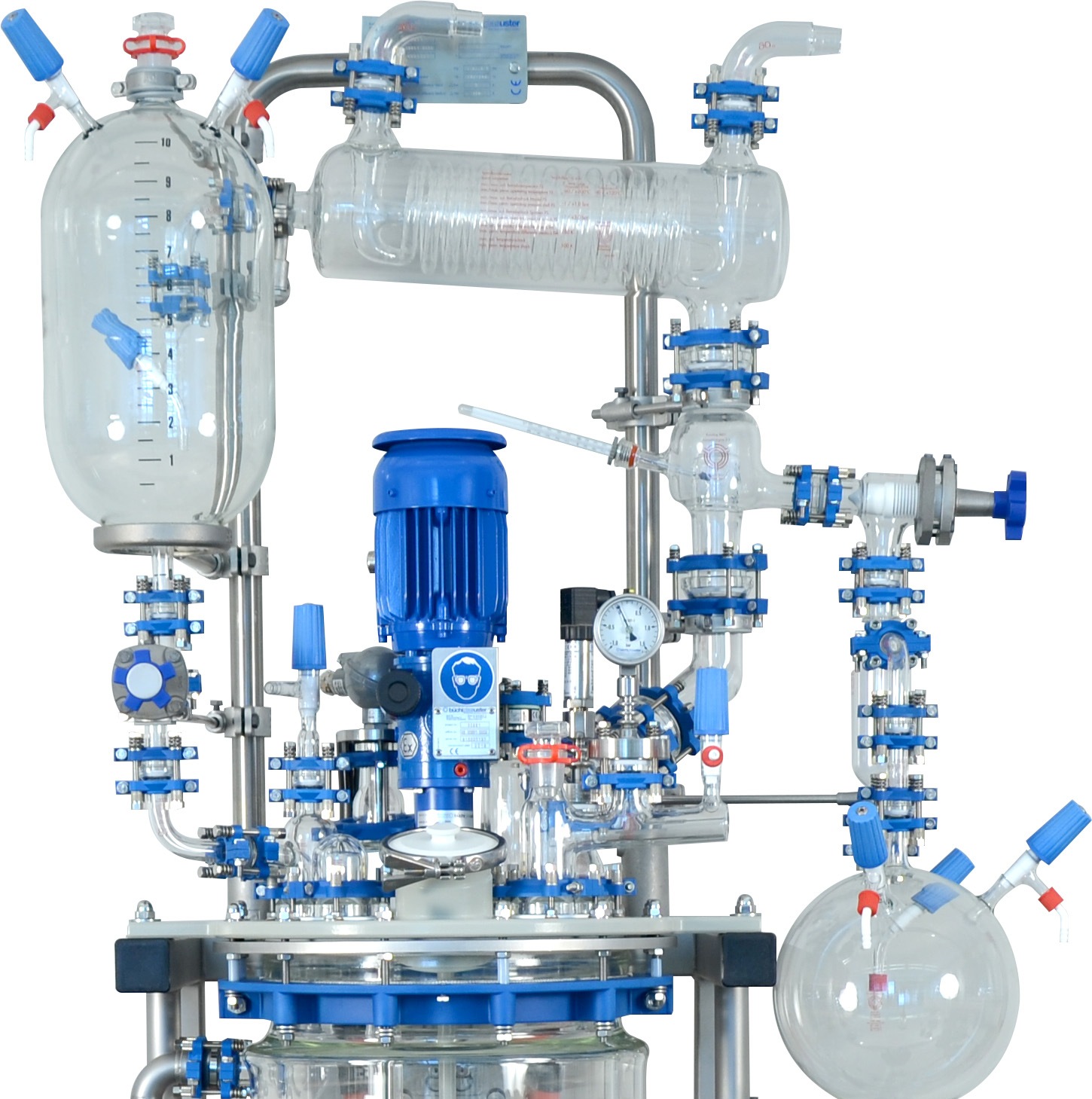

Distillation glass overhead

无残留
干净

蓝色涂层为导电材质
系统接地(ATEX)
弹簧弹性链接

miniPilot and midiPilot reactors

Learn more

chemReactor systems

Learn more

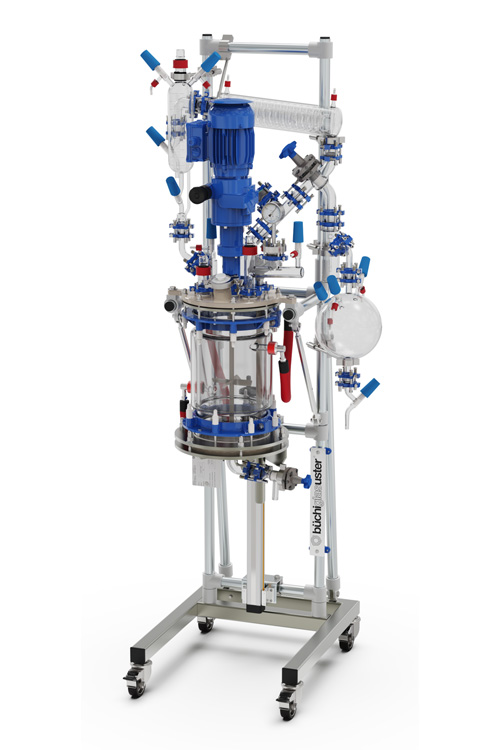

Filter reactors and peptide synthesizers

Learn more

Nutsche filters

Learn more

Gas scrubbers and mixing vessels

Learn more

Distillation, rectification systems and columns

Learn more

BE type 1000 liter glass lined reactor with glass overhead

Production-scale process equipment

Learn more

ATEX
PED
TA Luft

Parameter	Specification
Connection type	Ball-socket (spherical) flexible glass joint
Nominal diameter range	DN 15 – DN 150
Wetted materials	Borosilicate glass 3.3, PTFE
Metal flanges	Electrically conductive coating / polished stainless steel
Approvals	ATEX, PED, TA Luft

buchiflex has proven its reliability and cost-effectiveness in numerous installations worldwide, in plants built for demanding daily operation in the chemical and pharmaceutical industry. Continued development of the system and its components ensures that current standards and industry guidelines are consistently met.
