novoclave® - 高压反应釜

novoclave - 高温/高压实验室反应釜(HPHT) novoclave - 高温/高压实验室反应釜(HPHT)

实验室用高压/高温反应器(HPHT)

反应釜容积:100 至 600 毫升
压力:-1(FV)至 +500 巴
温度:-20 °C 至 +500 °C
材质:不锈钢、哈氏合金®

您是否在寻找超越标准产品的解决方案?

我们开发完全契合您的工艺流程和要求的定制化解决方案。

欢迎联系我们

典型应用

  • 加氢反应器
  • 聚合反应器
  • 合成反应器
  • 催化剂测试/评估
  • 催化反应器
  • 结晶
  • 化学研究、合成
  • 石油化工研究
  • 腐蚀测量
  • 上游研究
  • 生物质研究
  • 生物聚合物研究
  • 生物精炼研究
  • 生物燃料研究
  • 纳米颗粒合成
  • 腐蚀测试



About novoclave®

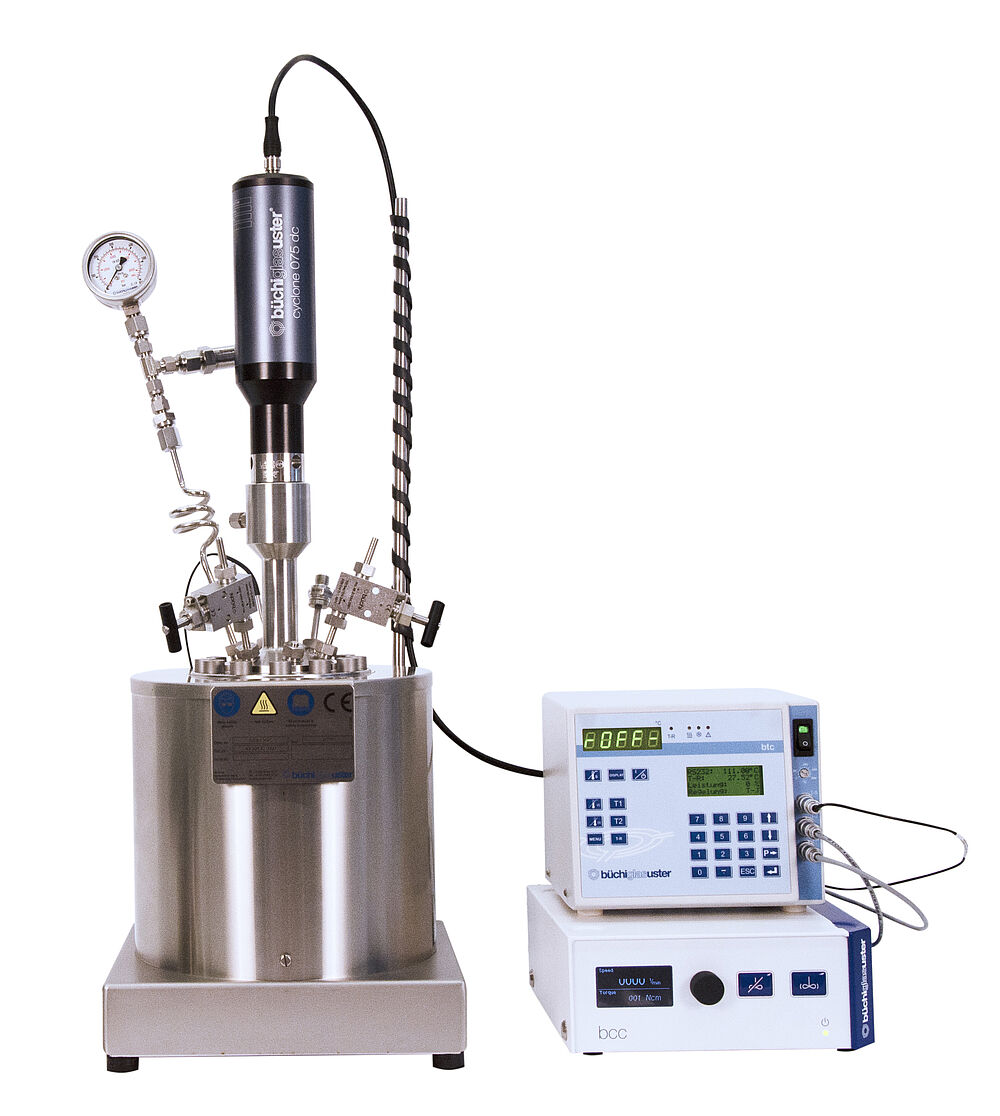

This is our high pressure and high temperature HPHT reactor novoclave®. This high pressure reactor system is designed for processes involving high pressures and temperatures.

Safety features guarantee safe reactions under highest pressure. The system is designed, manufactured, and tested according to PED and AD2000. It features electrical heating with built-in automated tap water cooling. This setup ensures fast and precise temperature control. A programmable PID controller allows easy operation at the device or via PC.

Modular setup and materials

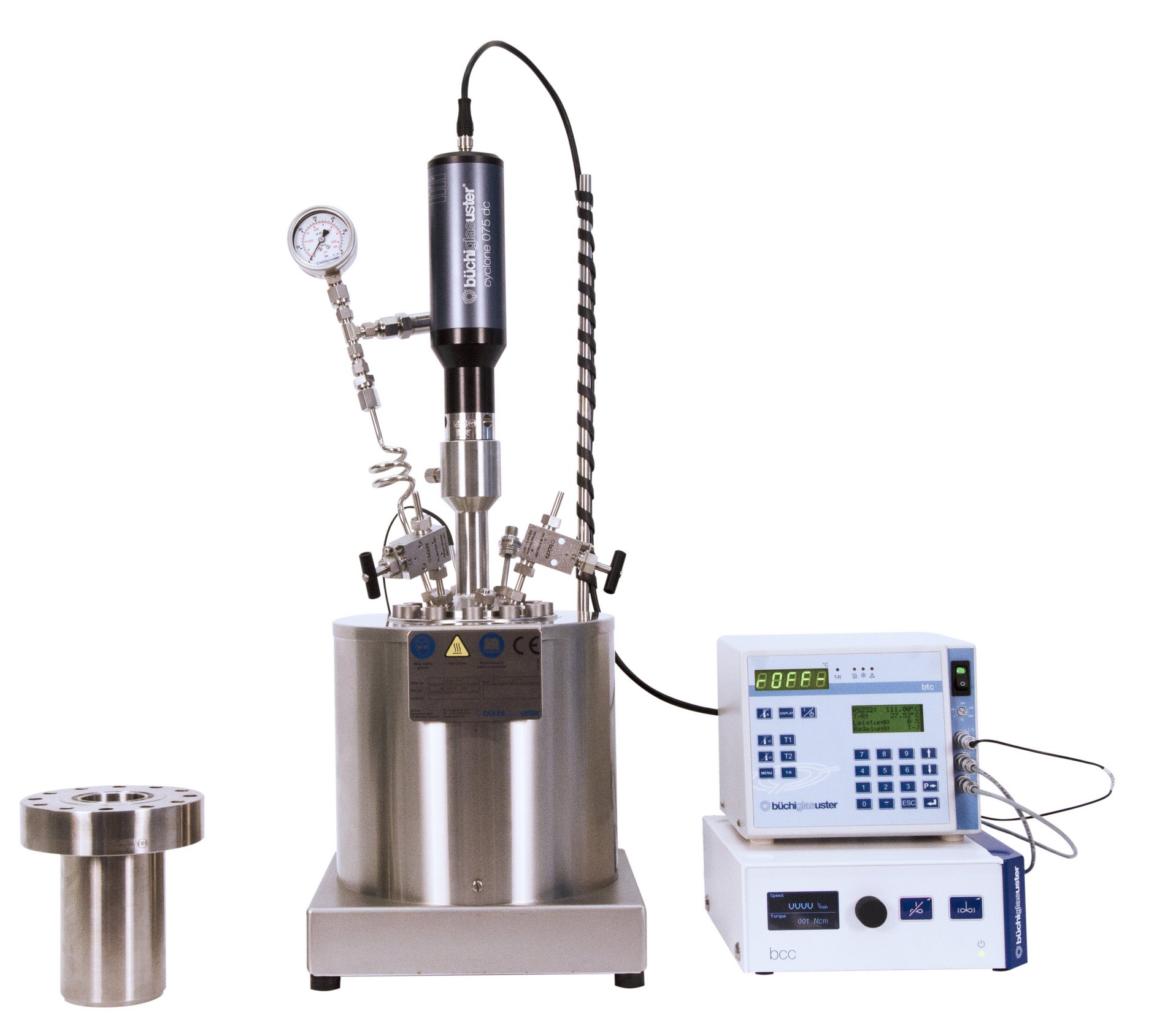

The modular setup of the novoclave® system allows for changing the vessel size from 100 ml up to 600 ml. You can use the same cover plate and electric heating block. Vessels are available in the following volumes: 100, 200, 300, 450, and 600 ml.

Despite changing vessel sizes, the system maintains the optimal vessel geometry regarding the relation between diameter and length.

The stainless steel or Hastelloy® reactors ensure high corrosion resistance. Furthermore, the magnetic stirrer drive ensures efficient mixing and stirring of the process media. It also provides excellent heat transfer.



标配

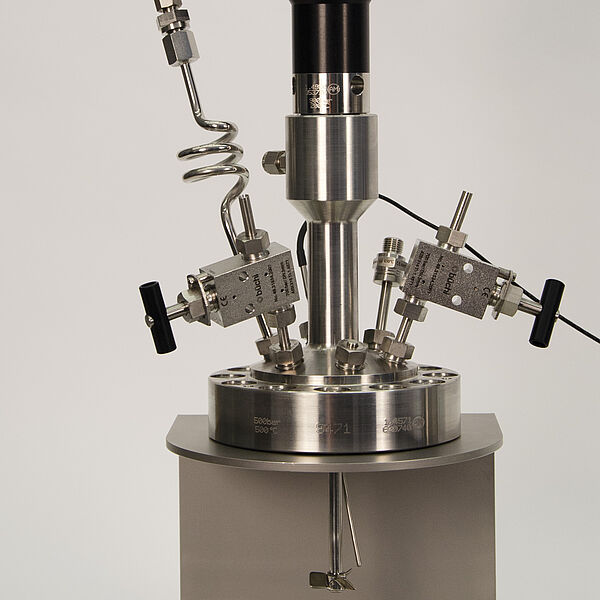

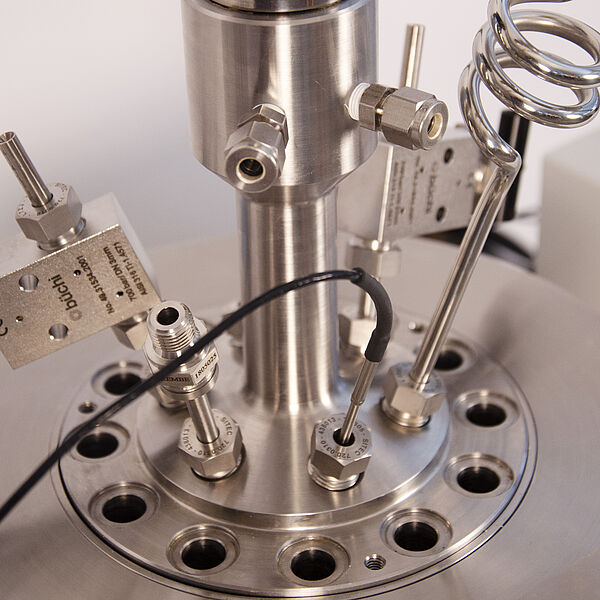

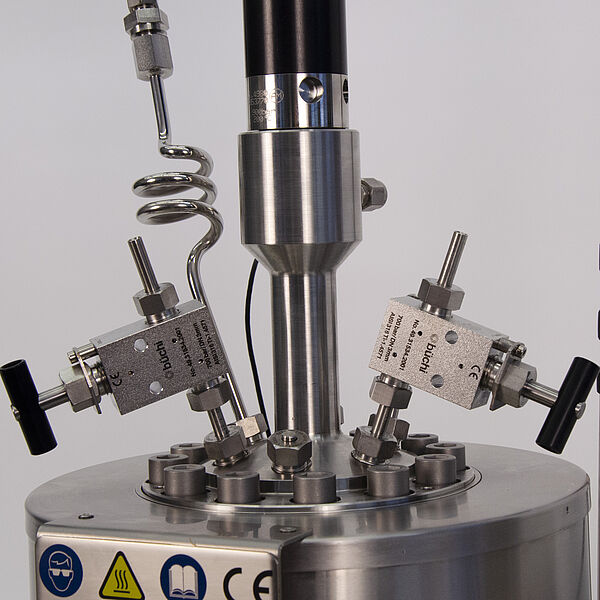

  • 6个开口的盖板(标准配备:压力计,Pt100,破裂片,2个阀和1个开口作为备用)
  • 可互换压力容器(型号3),100 / 200 / 300 / 450 / 600ml
  • 搅拌驱动器 « cyclone 075 » 具有完整磁力联轴器
  • 包括 控制器 « cc 075 »(速度可手动调节0-3000 rpm)
  • 具有完整自动水冷系统的电热板(通过电磁阀通过PID温度控制器btc控制)
  • 可编程PID温度控制器btc

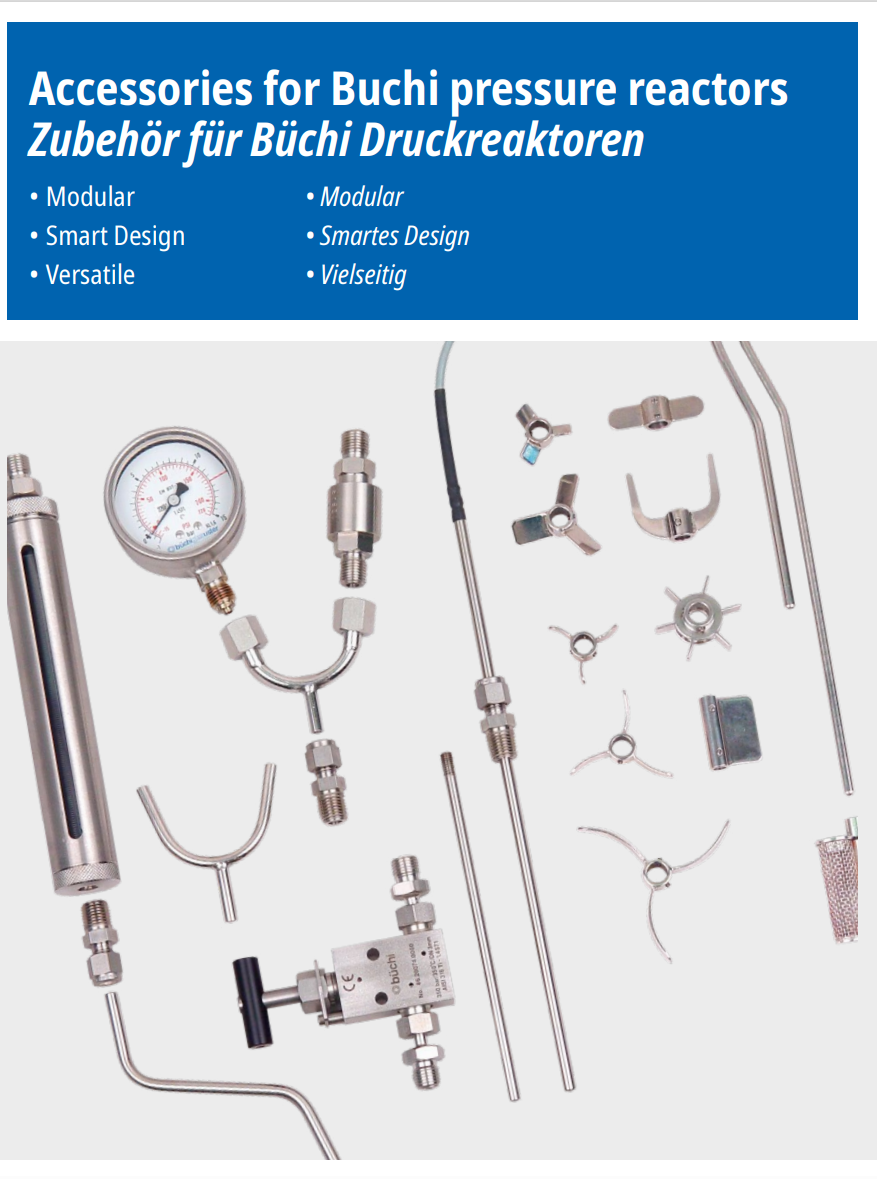

  • 工具和配件

我司高压反应器 novoclave® 的示例
