10–400 升混合容器、储罐

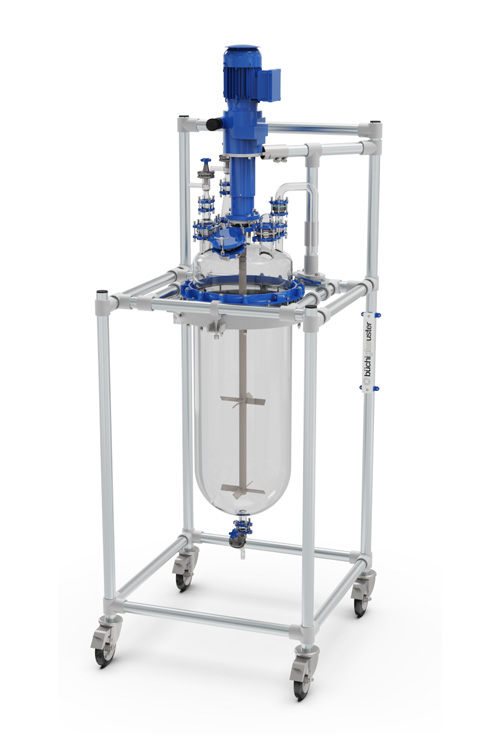

Jacketed 100 liter glass reactor, mixing vessel Jacketed 100 liter glass reactor, mixing vessel

移动式和固定式装置



混合容器(夹套玻璃容器):10、30、50、100 升
混合容器(非夹套玻璃容器):10、30、50、100、200 升
储罐(非夹套玻璃容器):10 - 400 升
压力:-1.0 (FV) 至 +0.5 bar
温度:-60 °C (-90°C) 至 +150 °C (200 °C)
材料:硼硅酸盐玻璃 3.3、聚四氟乙烯 (PTFE)、可溶性聚四氟乙烯 (PFA)、乙烯-四氟乙烯共聚物 (ETFE)

可提供其他设置


典型应用

  • 混合/调配
  • 反应物的制备(溶解)
  • 提取
  • 分离/相分离
  • 结晶
  • 反应
  • 中间体、溶剂和反应物的储存



Are you looking for more than standard products?

We develop customized solutions precisely aligned with your processes and requirements.

get in touch with us

About mixing vessels

Mixing vessels are frequently used for stirring, dissolving, mixing, extraction and other processes in kilo labs and pilot plants. Jacketed glass reactors permit heat exchange for better dissolving and crystallization.

Mobile mixing vessels can be transported with their content for further processing. They can also be equipped with condensers for vacuum distillation and operated as a reactor. Connection to Buchi reactors or other equipment is usually done with camlock adapters and flexible hoses.

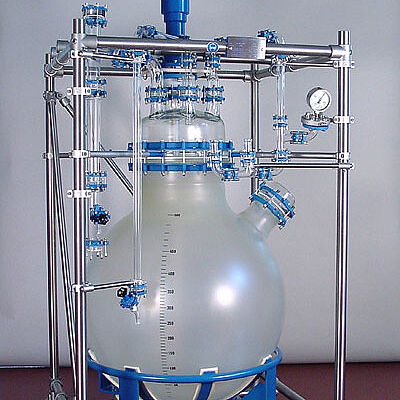

Glass tanks are used in distillation glass overheads as feeders and receivers. Such vessel are normally graduated, sometimes coated with Buchi glass protect coating to protect the glass surface against scratches. Antistatic coating according to ATEX is available.

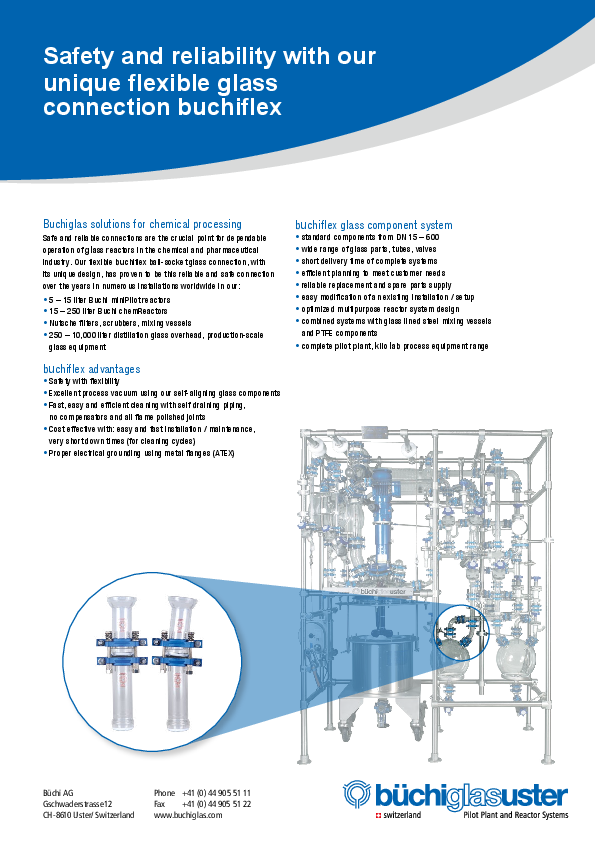

Depending on the application, glass tanks, mixing vessel and reactors vary a lot in their design. A selection of standardized vessels including info on the configuration can be found in the buchiflex glass catalog about glass components.



Standard package

Standard options

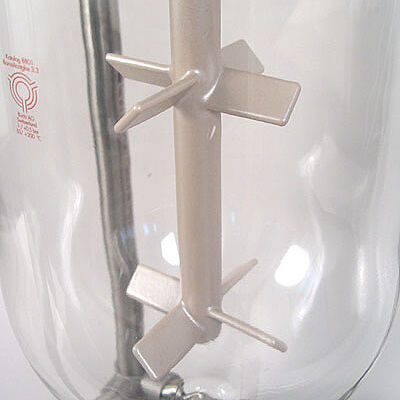

  • Stirrers in different shapes, e.g. multi-stage etc.
  • Flush mounted drain valve (zero dead volume)
  • Full glass reactor with heating / cooling jacket
  • CIP capability
  • Glass reflux condenser
  • Camlock fittings for flexible hose connection
  • IQ / OQ / PQ

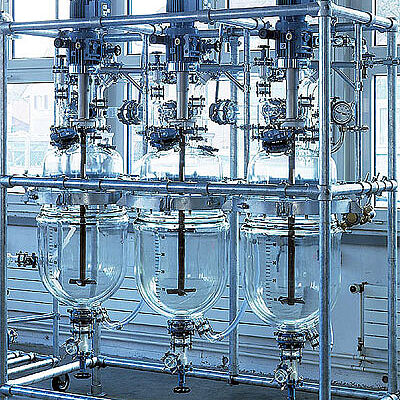

Examples
