Kilo lab for vacuum - pressure process: Büchiglas

kilo lab for chemical synthesis, hydrogenations - full vacuum to high pressure chemistry

ATEX Zone 1 kilo lab for chemical vacuum / pressure reactions

Glass Reactor miniPilot:	10 liter / -1.0 to +1.0 bar
Pressure Reactor kiloclave:	5 liter / 60 bar
Hydrogenation system	bpc
Glass Nutsch Filter:	10l
Gas scrubber:	6l
Temperature:	-90 °C to +200 °C
Material:	Borosilicate glass 3.3, Stainless steel, PTFE ,PFA

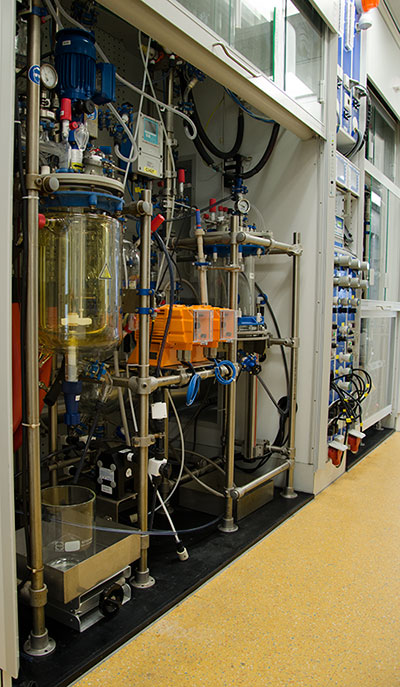

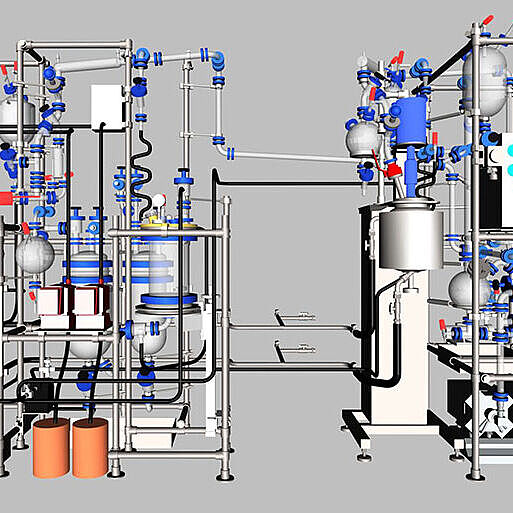

This compact and versatile kilolab shows the combination of different Buchi equipment in one plant.
Reactors, filters, gas scrubbers, dosing and control components, were installed in minimal space at the R+D kilo lab at Teva ratiopharm in Ulm, Germany.

Hydrogenations, low-temperature reactions (-80 °C), chemical processes with strong bases are executed in the system, which serves for Final Step processing also.

Customer statement:
«The great advantage when planning the system was that Buchi provided everything from a single source. The merging of the two systems went smoothly and as a sole supplier responsible for the glass process equipment, the autoclave and the complete control, the potential for error was kept low while the quality was kept at a high level.»

Dr. Hans-Günter Striegel, Laboratory Head Teva ratiopharm

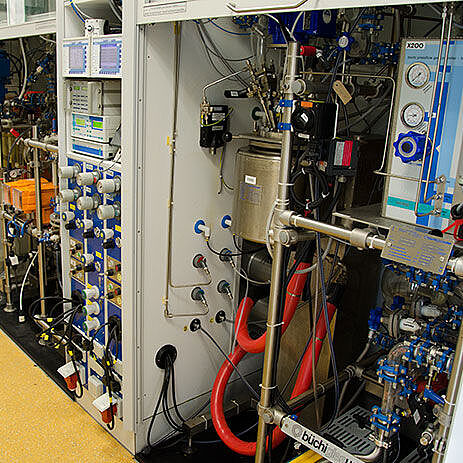

Kilo lab Teva ratiopharm - kiloclave, bpc ex, scrubber
